Parameter
1. Light source: semiconductor laser
2. Testing sample temperature: 0 ℃~80 ℃
3. Particle size range: 1 μ m to 500 μ m
4. Detection speed: 5~60mL/min (default 25mL/min)
5. Cleaning speed: 5~60mL/min
6. Overlap error limit: 12000~40000 particles/mL
7. Particle count repeatability: RSD<2%
8. Sensitivity: 1 µm (ISO 4402) or 4 µm (C) (ISO 11171, GB/T18854)

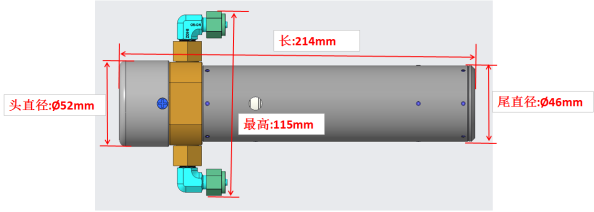

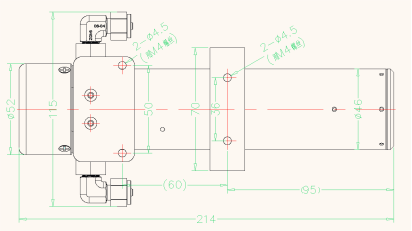

9. Length: 214mm, maximum: 115mm
10. Head diameter: 52mm, tail diameter: 46mm
11. The fixing device can be moved with M4 screws

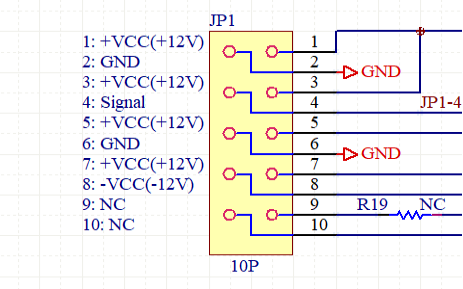

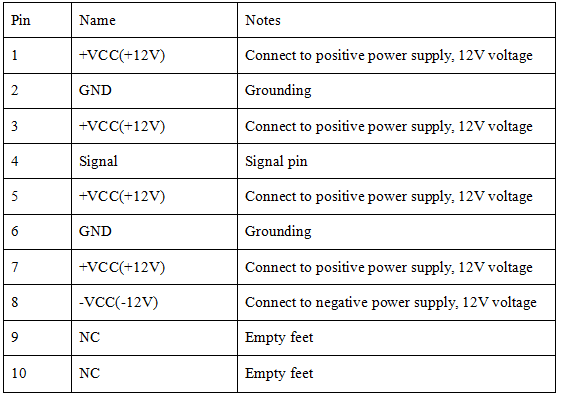

12. Pin Description
