The SciAps Z Series is the only handheld analyzer in the world that provides on-site, real-time analysis of lithium in rocks, ores, powders and brines. It is used globally for lithium exploration projects with no travel restrictions or licensing issues.
1.Weight: 3.87 lbs (1.75 kg) including battery.
2.Dimensions: 10.75" × 2.375" × 8.625".

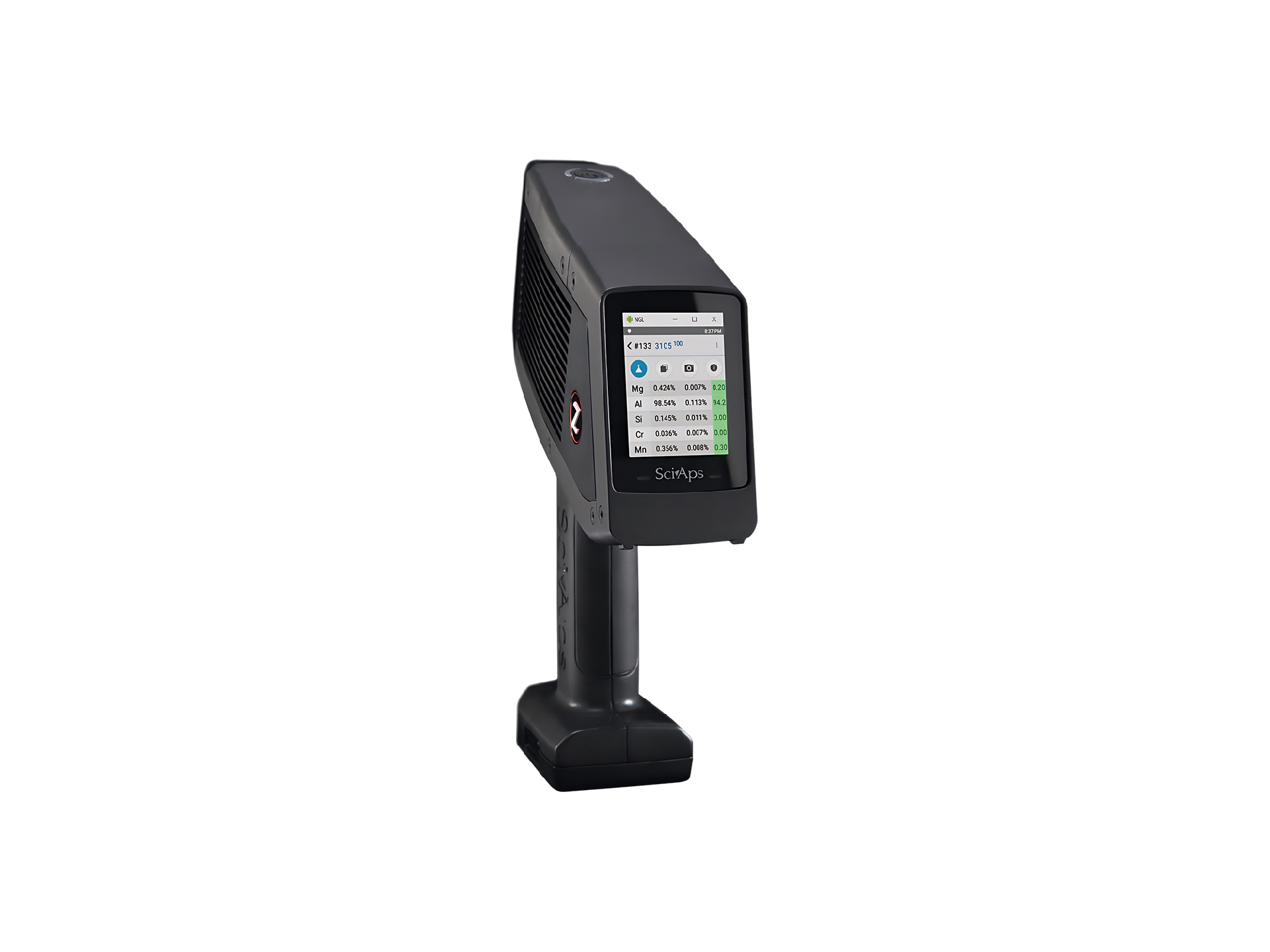

3.Display: 2.7" high-brightness color touchscreen, readable under all lighting conditions. Rear-mounted display for convenient result viewing.
4.Power Supply: Equipped with rechargeable lithium-ion battery, chargeable via internal or external charger, and AC power compatible.
5.Processor & Memory: ARM Quad Cortex-A53 1.2 GHz; Memory: 2 GB LPDDR3, 16 GB eMMC.
6.Data Storage: Results storage: 32 GB SD card.
7.Connectivity: Real-time data export based on Google Android platform; built-in WiFi (IEEE 802.11b/g/n), Bluetooth (BR/EDR+BLE), GPS and USB-C, compatible with nearly any information management system.
8.Sample Viewing: Integrated camera and laser aiming indicator for sample viewing before and during analysis to ensure accurate targeting. A second “macro camera” for scanning QR or barcodes, integrated into photo documentation and report generation.
9.Laser Grid: Onboard Y-axis driven laser for analysis and averaging at multiple discrete positions.
10.Test Atmosphere: SciAps exclusive Opti-Purge provides inert argon atmosphere, improving spectral signal-to-noise ratio and enhancing signal acquisition performance in the ultraviolet range.
11.Calibration & Self-Test: Automatic calibration and wavelength scale verification using 316 stainless steel standard.
12.Drift Correction: Built-in automatic drift correction software with factory or user-supplied reference standards.
13.Compliance: CE, RoHS compliant, USFDA registered. Class 3B laser. Approved by local LSO; drop-in sample sensor enables operation under Class 1 conditions.
14.Spectral Range: 350–675 nm.
15.Calibration Curves: Li in pegmatite, Li in clay, Li in mica schist. Operators can create additional matrix-matched calibrations using Profile Builder software on PC and tablet.
16.Security: Password protection; configurable multi-user access settings interface.
Accurate Elemental Analysis
Custom handheld LIBS analyzer for measuring lithium in lithium ore, rocks and brines. Factory-calibrated for lithium in pegmatite, clay and mica, including relevant major elements within the 350–675 nm spectral range. SciAps also offers the Z-903 Lithium Analyzer, equipped with a second optical chamber that extends the analysis range to 210 nm, allowing users to test additional elements in brines, including boron, magnesium, calcium and potassium.
Intuitive Operation
The Android operating system and app-based software ensure reliable quality testing for every operator. Built-in WiFi, Bluetooth and GPS functionality allow users to print results, send emails and connect to nearly any information management system for full-featured reporting. Automatic integration of XRF and LIBS testing with the SciAps Cloud Service enables easy operational management from anywhere.
Designed for Field and Laboratory Use

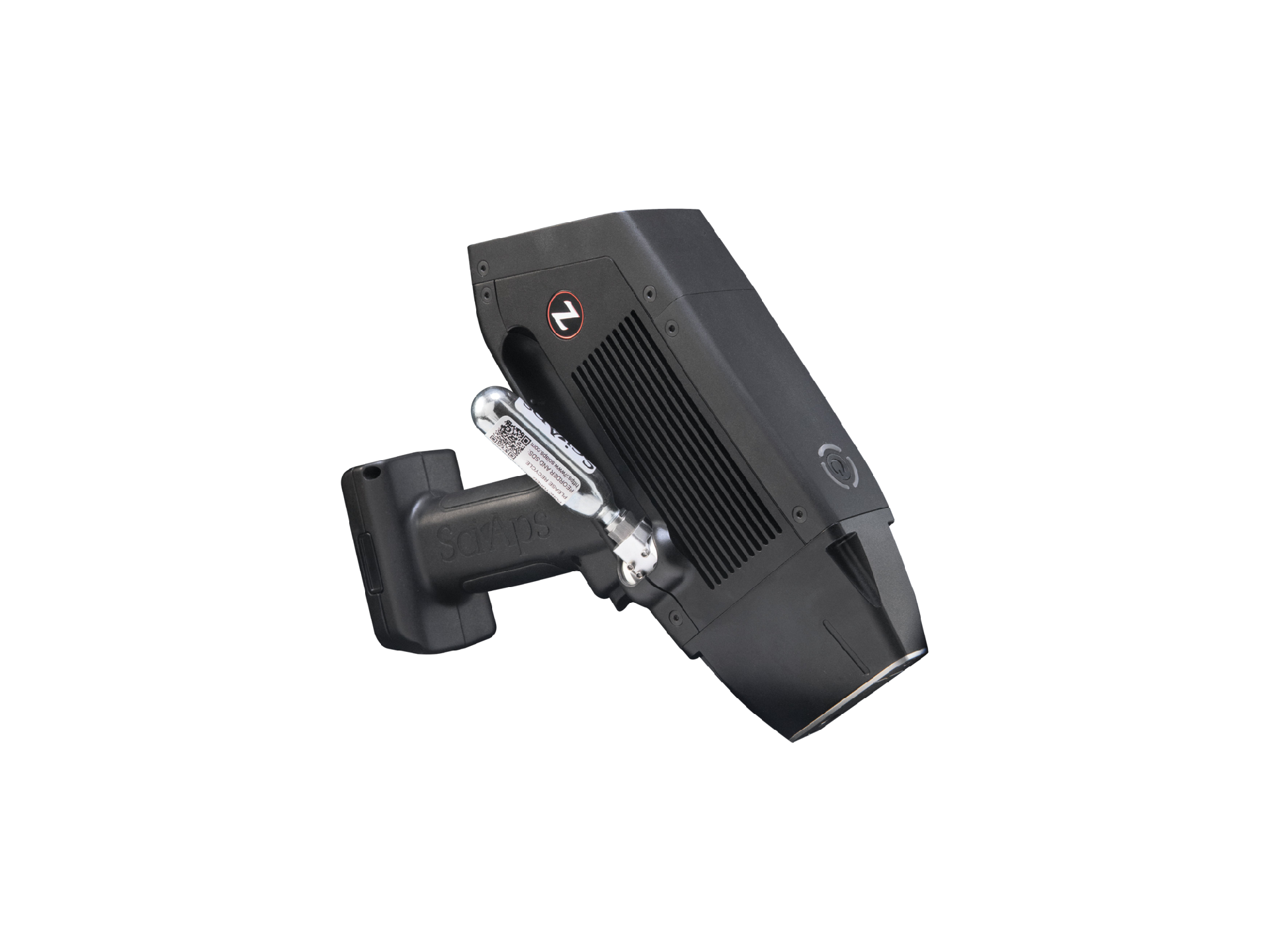

SciAps LIBS series handheld analyzers weigh only 3.5 lbs (1.6 kg with battery). An internal camera enables precise positioning of analysis points; a macro camera is used to capture sample photos and read barcodes and QR codes. The patented “sample sensor” allows Class 1 operation (subject to LSO approval). A high-resolution rear-mounted display ensures easy viewing. The rugged metal casing ensures maximum durability, while a tapered narrow probe tip enables testing in hard-to-reach locations. User-replaceable argon costs just a few cents per test and supports hundreds of analyses. Paired with Profile Builder software for PC or tablet, it delivers full desktop-level functionality.
