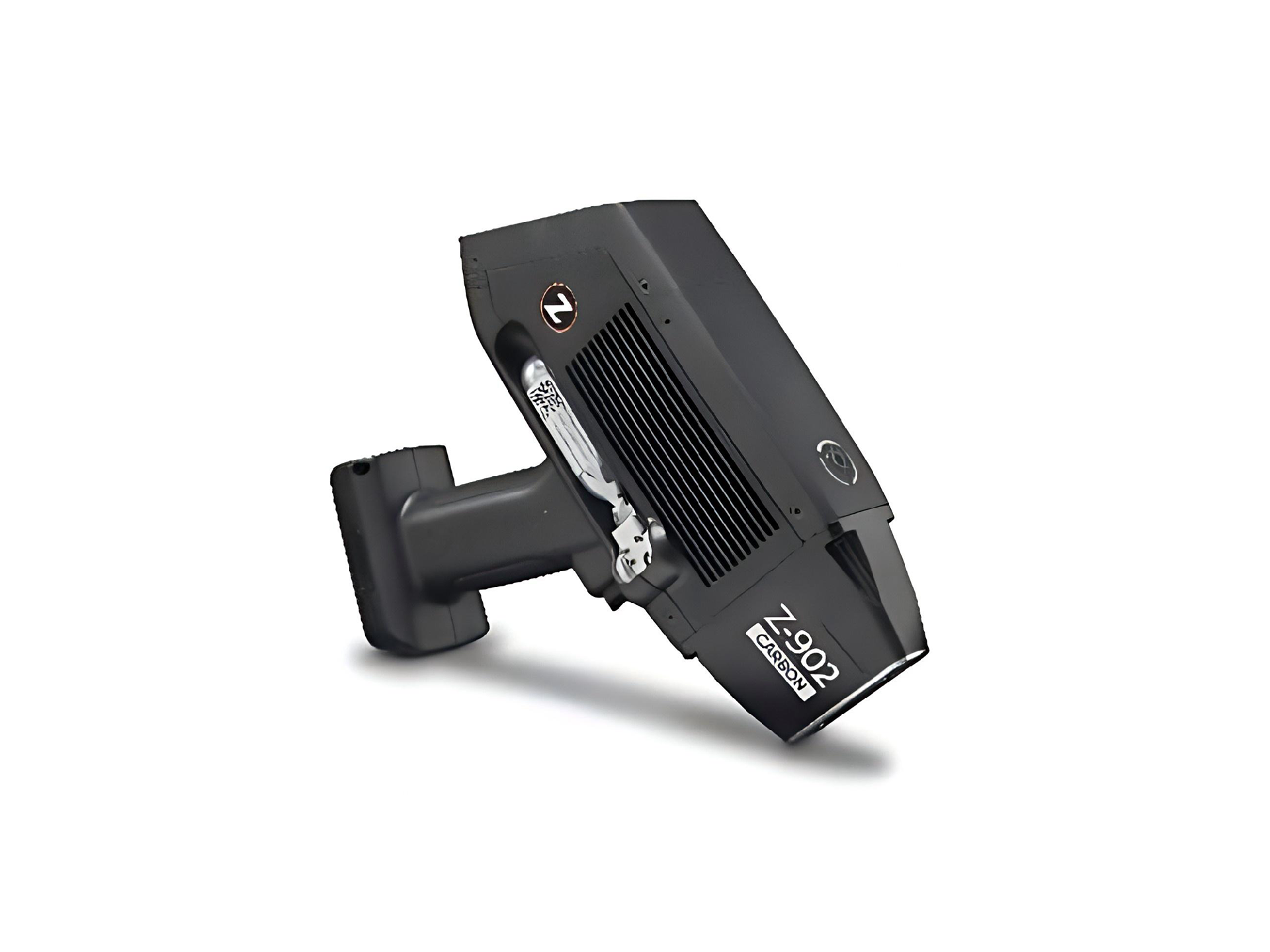

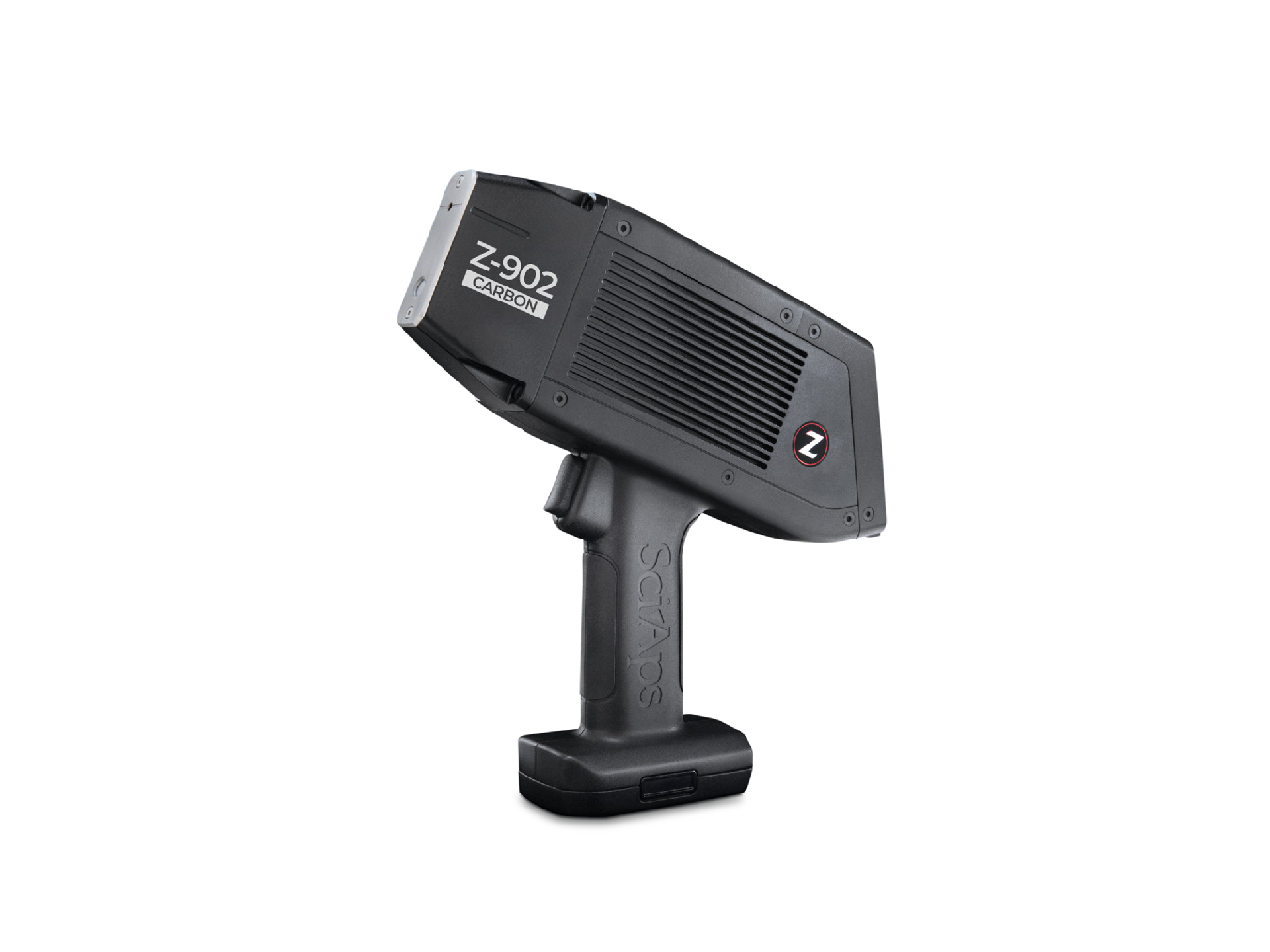

Weighing only 4.35 lbs (1.97 kg) including battery, the instrument features a slim profile for easy access to the most confined spaces. Its aerospace-grade aluminum alloy casing enhances performance in high-temperature environments, paired with a newly designed Android-based user interface, making this system one of the most reliable testing platforms on the market. Equipped with WiFi, Bluetooth and GPS functionality, it supports printing, emailing and seamless connection to nearly any information management system, enabling efficient, real-time testing and reporting. Backed by our advanced laser technology, the high-resolution spectrometer with onboard argon purging effortlessly handles the identification of stainless steels and low-alloy steels. It can analyze carbon content down to 70 ppm and calculate instantaneous carbon content.
1.Weight: 3.87 lbs (1.75 kg) including battery.
2.Dimensions: 10.75 × 2.875 × 8.625 inches.
3.Display: 2.7" high-brightness color touchscreen, readable under all lighting conditions. Rear-mounted display for convenient result viewing.
4.Power Supply: Equipped with rechargeable lithium-ion battery, chargeable via internal or external charger, and compatible with AC power supply.
5.Processor & Memory: ARM Quad Cortex-A53 1.2 GHz; Memory: 2 GB LPDDR3, 16 GB eMMC.
6.Data Storage: Result storage: 32 GB SD card.
7.Connectivity: Real-time data export based on Google Android platform; built-in WiFi (IEEE 802.11b/g/n), Bluetooth (BR/EDR+BLE), GPS and USB-C, enabling connection to almost any information management system.
8.Sample Observation: Integrated camera and laser aiming indicator for viewing samples before and during analysis to ensure accurate targeting. A second "macro camera" for scanning QR or barcodes, integrated into photo documentation and report generation.
9.Laser Grid: Onboard Y-axis driven laser for analysis and averaging at multiple discrete positions.
10.Test Atmosphere: SciAps exclusive Opti-Purge provides inert argon atmosphere, improving spectral signal-to-noise ratio and enhancing signal acquisition performance in the ultraviolet range.
11.Calibration & Self-Test: Automatic calibration and wavelength scale verification using 316 stainless steel standard.
12.Drift Correction: Built-in automatic drift correction software with factory-supplied or user-supplied reference materials.
13.Compliance: CE, RoHS compliant, USFDA registered. Class 3B laser. Approved by local LSO; drop-in sample sensor enables operation under Class 1 conditions.
14.Spectral Range: 350–675 nm.
15.Security: Password protection; configurable multi-user access settings interface.
Calibration Curves:
Aluminum matrix: Be, Mg, Al, Si, Ti, V, Cr, Mn, Fe, Ni, Cu, Zn, Zr, Pb, Bi, Ag, Sn.
Titanium matrix: Al, Ti, V, Cr, Fe, Cu, Zr, Nb, Mo, Sn.
Low-alloy steel: C, Al, Si, Ti, V, Cr, Mn, Fe, Cu, Ni, Nb, Mo, Pb.
Stainless steel: C, Al, Si, Ti, V, Cr, Mn, Ni, Fe, Cu, Nb, Mo, W.
Nickel matrix: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W.
Copper matrix: Be, Al, Si, Cr, Mn, Fe, Ni, Cu, Zn, Ag, Sn, Pb, Bi.
Cobalt matrix: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W.
Special matrix: Mg, V, Cr, Mn, Co, Zn, Zr, Nb, Mo, Ag, Sn, Hf, Ta, W, Re, Pb, Sn.
