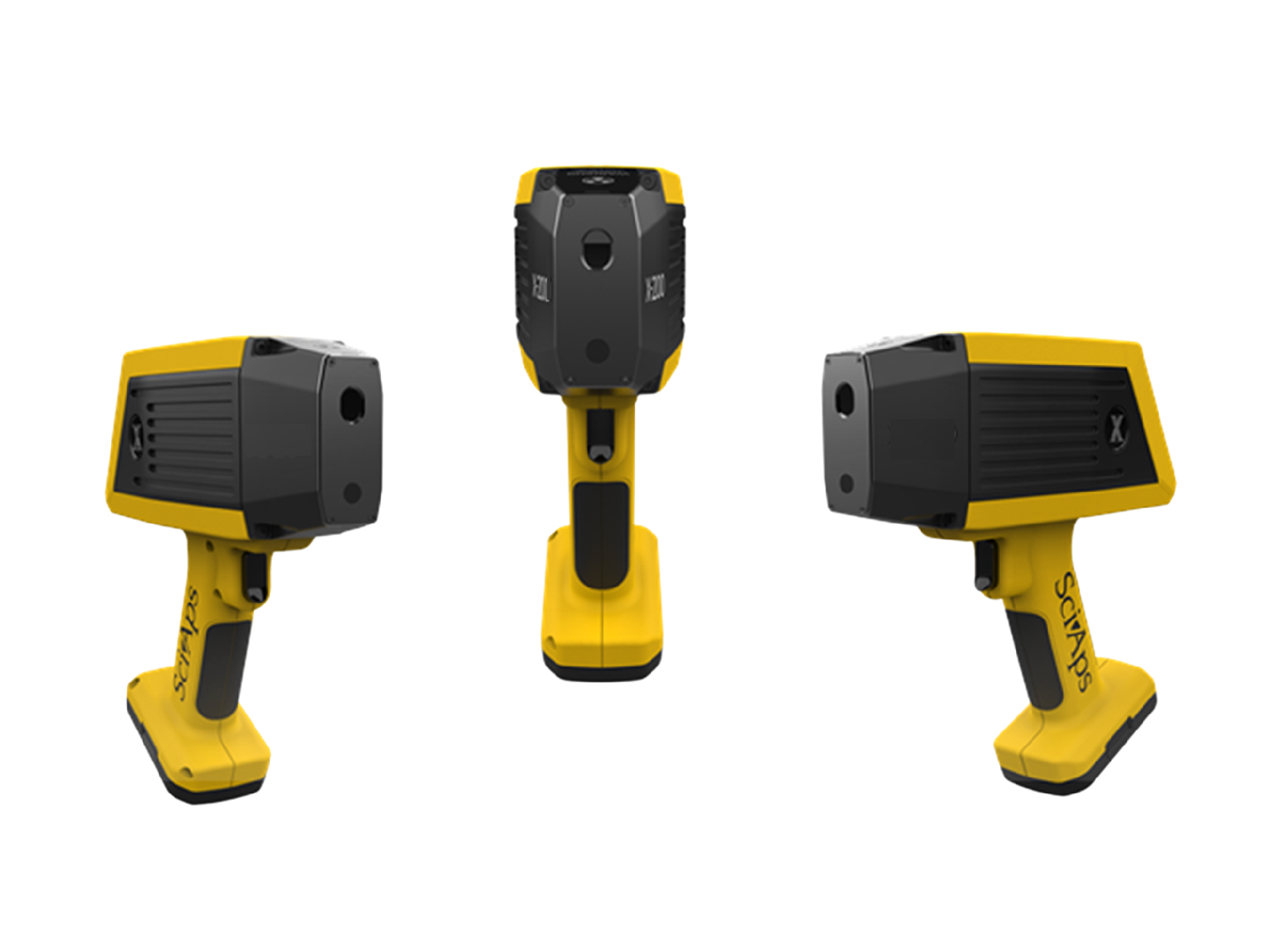

The all-new designed X-50 is the highest-performing XRF instrument on the market, featuring classic PiN diode detector technology. It delivers best-in-class analytical performance and speed for this detector platform, with an operating speed twice or higher than that of other brands. Optimized analysis is required for alloys, including common aluminum alloys. SciAps' powerful miniaturized X-ray tube, combined with highly advanced internal geometry, enables rapid and accurate determination of a full range of transition elements and heavy metals from titanium (Ti) to bismuth (Bi).
1.Weight: ＜1.5 kg (including battery); Dimensions: 238×283×84 mm; Probe suitable for narrow gap testing.
2.Excitation Source: Rh target micro X-ray tube, max. 50 kV / 200 μA / 4 W; Au target available as option.
3.Detector: 20 mm² SDD, resolution 135 eV (5.95 Mn K-α); puncture-resistant protection optional.
4.Cooling: Peltier thermostatic cooling at -20 ℃, ensuring stable accuracy.
5.Display: 5-inch industrial touchscreen, integrated dust-proof, anti-fog and water-resistant design.
6.Elements Measured: Mg–U; 36 elements standard, expandable.
7.Functions: Dual cameras, Bluetooth / USB data transfer, remote diagnosis, custom modeling software.
8.Battery Life: Rechargeable Li-ion battery supports > 8 hours of continuous operation; hot-swappable battery.
9.Spot Size: 3.5 mm, suitable for small samples and weld inspection.
1.Weight: < 1.5 kg (including battery).
2.Dimensions & Features:Overall dimensions: 238 mm × 283 mm × 84 mmProbe head dimensions: 22 mm (front) × 45 mm (middle) × 60 mm (rear)Suitable for both conventional metal samples and narrow-gap measurements.
3.Excitation Source:High-performance micro X-ray tube with Rh anode target.Max. tube voltage: 40 kV; max. tube current: 100 μA; rated power: 4 W (50 kV optional).
4.Detector:High-performance, high-precision, high-sensitivity standard Si PIN diode detector.Resolution: 190 eV FWHM at 5.95 keV Mn K α line.Optional puncture-resistant protection for effective detector safeguarding.
5.Cooling System:Peltier thermostatic cooling system maintains detector temperature at −20 °C,ensuring measurement accuracy and immunity to ambient temperature variations.
6.Electronics:14-bit ADC, 80 MSPS sampling rate, 8K-channel MCA.High-speed USB 2.0 data transmission to main processor.FPGA-implemented digital filtering for high-throughput pulse processing(peak time: 50 ns – 24 μs).
7.Display:Integrated enclosure design for improved dustproof, anti-fog and waterproof performance.Fixed display with no rotating parts, low failure rate.Industrial-grade high-resolution 5-inch smart touchscreen with PowerVR SGX540 GPU,employing white-light display technology with no LCD altitude-related performance degradation.Excellent visibility in both indoor low-light and strong sunlight environments.Low power consumption (≈50% of conventional displays), enhancing usability in various conditions.
8.Language Support:Multi-language interface, including Simplified Chinese and English.
9.Element Range:Standard configuration covers 31 elements from Ti to U,including Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Y, Se, Zr, Nb, Mo, Pd, Ag, Au, Cd, Pb, Bi, Sn, Sb, W, Ta, Hf, Re, etc.Additional elements can be added per customer requirements.
10.Built-in Dual Cameras:Internal camera: for sample viewing before and during analysis to ensure proper alignment.Macro camera: for scanning QR codes/barcodes, photo documentation and report generation.
11.Data Storage:1 GB DDR2 RAM, 1 GB NAND + 8 GB eMMC storage.
12.Data Transmission & Processing:ARM Cortex A9 dual-core / 1.2 GHz ARM Cortex A53 (64/32-bit).Real-time sharing of test results to mobile devices via Bluetooth.On-site sharing via WeChat, QQ or e mail for efficient communication.
13.Auto-Diagnosis & Fault Reporting:Remote fault diagnosis and software upgrades via Internet for timely customer support.
14.Operating System:Customized Android OS.Wireless synchronization via dedicated App over Bluetooth with phones or computers.On-site spectrum viewing and magnification without a PC.
15.Operating Temperature:−12 °C to 55 °C.
16.Battery:Rechargeable lithium-ion battery supporting > 8 hours of continuous operation per charge.Hot-swappable (maximum swap time: 60 seconds).
17.Modeling Software:Unique, user-friendly Profile Builder modeling software.Enables customers to develop custom analysis models based on their specific sample characteristics.
18.X-ray Spot Size:3.5 mm diameter.Small spot improves performance on small samples;no additional collimator or adapter required for weld inspection.
· Lightweight, portable and rugged, operating temperature range: −12 °C ~ 55 °C.
· Wider element coverage, higher accuracy, and rapid on-site result.
· Wireless connectivity + remote diagnosis for efficient data collaboration.
· Small X-ray spot with no extra collimator required, ideal for welds and small samples.
