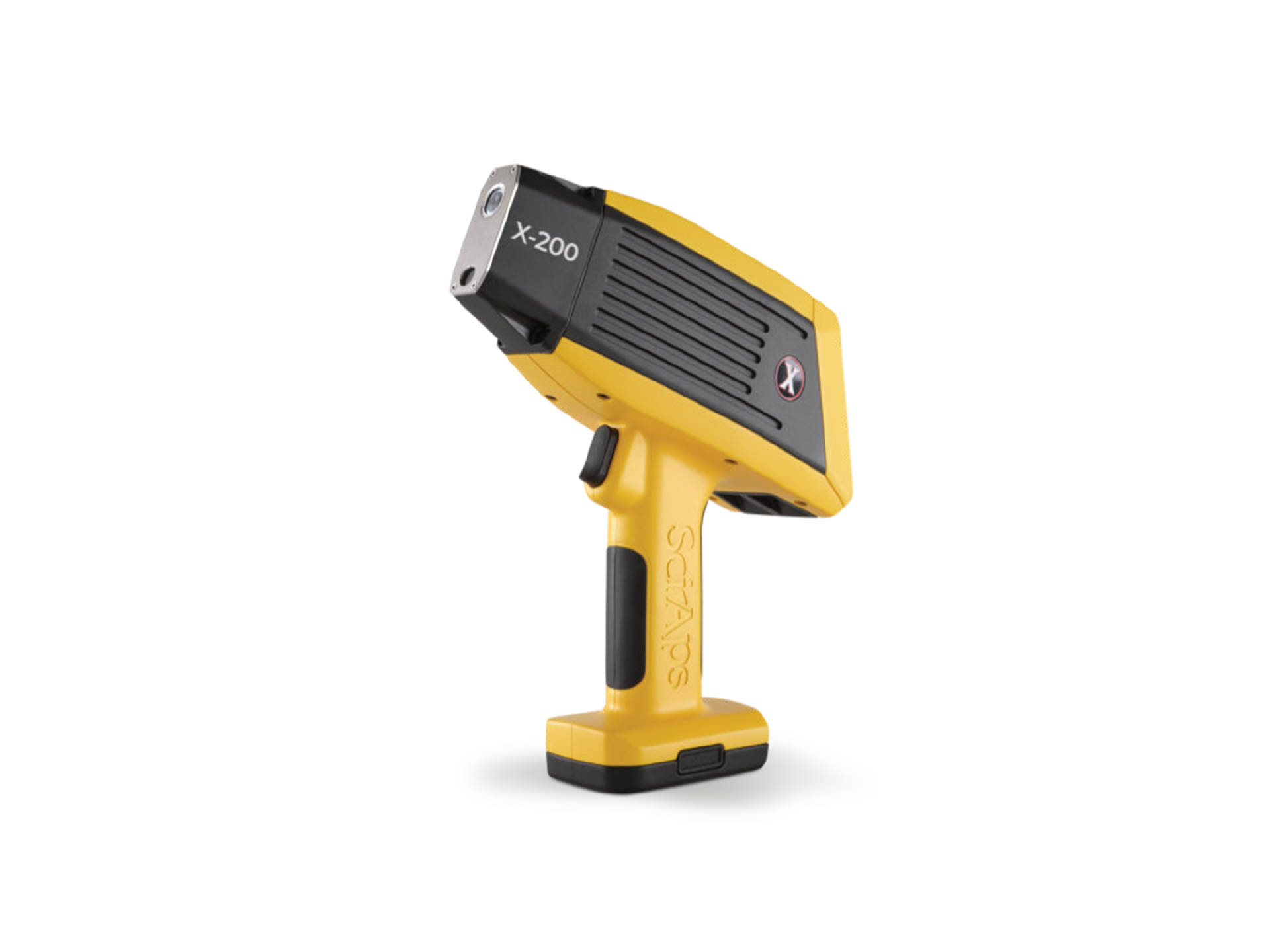

The X-200 XRF is one of SciAps’ most cost-effective models, delivering outstanding performance-to-price ratio. It is equipped with a high-performance SDD detector and features highly optimized geometry between the X-ray source and detector. Meanwhile, it offers improved heat dissipation, reduced weight and enhanced durability. Running on the Android operating system with integrated Wi-Fi connectivity, the instrument enables high-speed operation, seamless connectivity and efficient data management similar to a smartphone.
Element range: Standard configuration covers 36 elements from Mg to U, including Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Y, Se, Zr, Nb, Mo, Ru, Pd, Ag, Au, Cd, Pb, Bi, Sn, Sb, W, Ta, Hf, Re. Additional elements can be added according to customer requirements.
1. Weight: Less than 1.5 kg (including battery).
2. Dimensions & Features: 238mm × 283mm × 84mm; Probe head dimensions: 22mm (front) × 45mm (middle) × 60mm (rear). Suitable for testing conventional metal samples as well as samples in deep narrow gaps.
3. Excitation Source: High-performance micro X-ray tube with Rh anode target; maximum tube voltage: 50 kV; maximum tube current: 200 μA; rated power: 4 W. (50 kV with Au target available as an option).
4. Detector: High-performance, high-precision, high-sensitivity standard 20 mm² SDD detector; resolution: 135 eV FWHM at 5.95 keV Mn K-α line. Optional puncture-resistant protection is available to effectively protect the detector.
5. Cooling: Equipped with a Peltier thermostatic cooling system, keeping the detector operating at -20 °C to ensure measurement accuracy and immunity to ambient temperature interference.
6. Electronics: 14-bit ADC, 80 MSPS sampling rate, 8K-channel MCA; high-speed USB 2.0 data transmission to the main processor. FPGA-implemented digital filtering for high-throughput pulse processing (peak time: 50 ns – 24 μs).
7. Display: Integrated body design for improved dustproof, anti-fog and waterproof performance; fixed display with no rotating parts, low failure rate. Industrial-grade high-resolution 5-inch smart touchscreen with PowerVR SGX540, adopting white-light display technology with no LCD altitude effect. Excellent visibility in both indoor low-light and strong sunlight environments. Low power consumption, half that of traditional displays, enhancing display performance in various environments.
1.Language: Multi-language options are available, including Simplified Chinese and English operation interface.
2.Built-in dual cameras: Internal camera for viewing samples before and during analysis to ensure accurate sample alignment; macro camera for scanning QR codes or barcodes, as well as photo documentation and report generation.
3.Data Storage: 1GB DDR2 RAM, 1GB NAND and 8GB SD storage.
4.Data Transmission and Processing: ARM Cortex-A9 dual-core / 1.2GHz ARM Cortex A53 64/32-bit. Test results of the instrument can be directly shared to mobile phones in real time via Bluetooth. On site, results can be sent to relevant personnel via mobile WeChat, QQ or e-mail, which is convenient and efficient for communication.
5.Automatic Diagnosis and Fault Reporting: Remote fault diagnosis and software upgrade via Internet to provide timely services for customers.
6.Operating System: Customized Android system. Wireless synchronous operation can be realized by connecting mobile phones or computers via dedicated App with Bluetooth. Spectra of relevant elements can be viewed and magnified on site without a computer.
7.Operating Temperature: Adaptable to ambient temperatures ranging from -12°C to 55°C.
8.Battery: Rechargeable lithium battery, which supports more than 8 hours of continuous operation per full charge, with hot-swappable function (maximum replacement time: 60 seconds).
9.Modeling Software: Unique and easy-to-operate Profile Builder modeling software, allowing customers to re-develop unique analysis models according to the characteristics of their own samples.
10.X-ray Spot Diameter at Measuring Point: 3.5mm. The small spot improves the detection performance of small samples, and no additional collimator or adapter is required for weld inspection.
