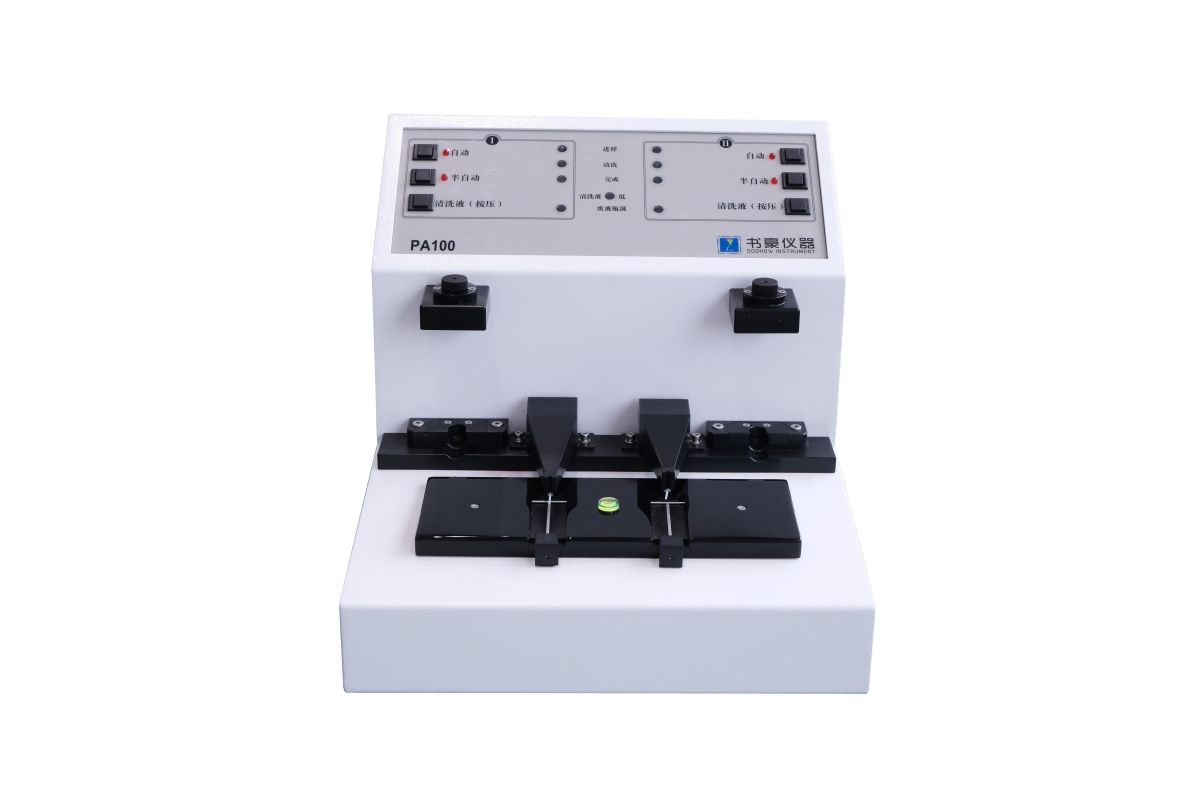

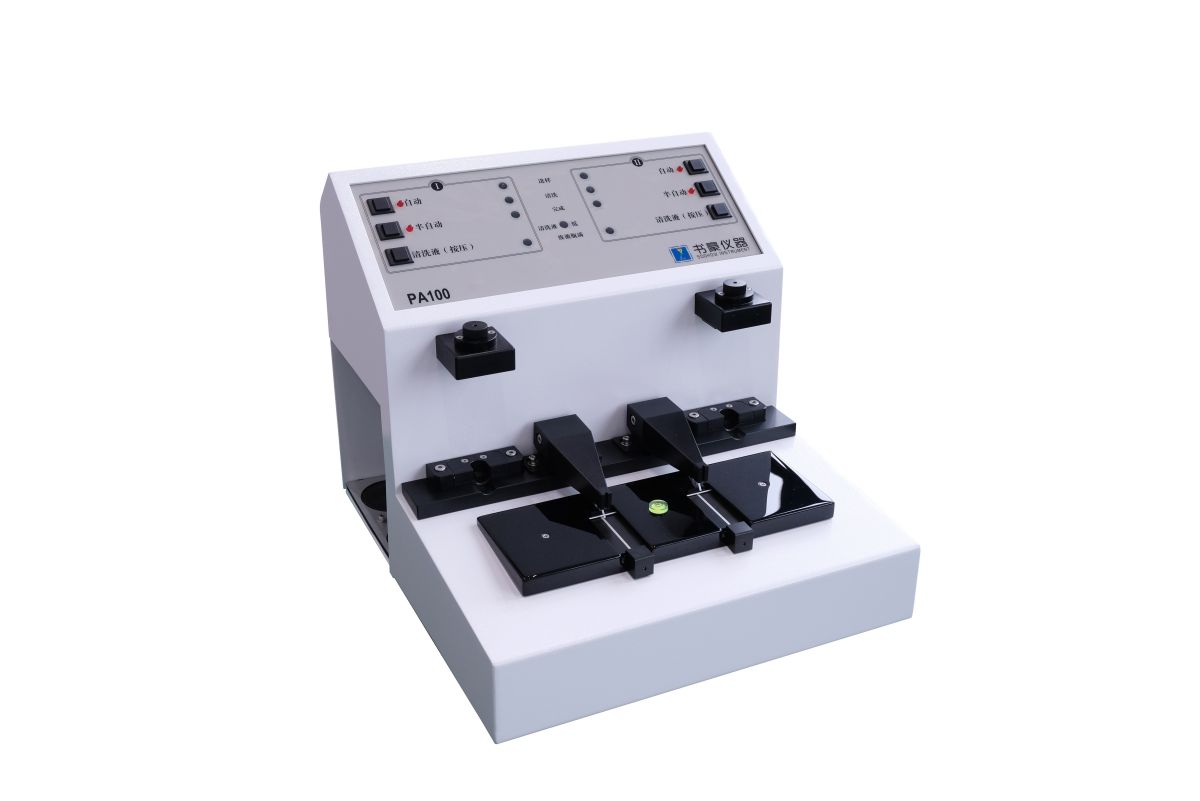

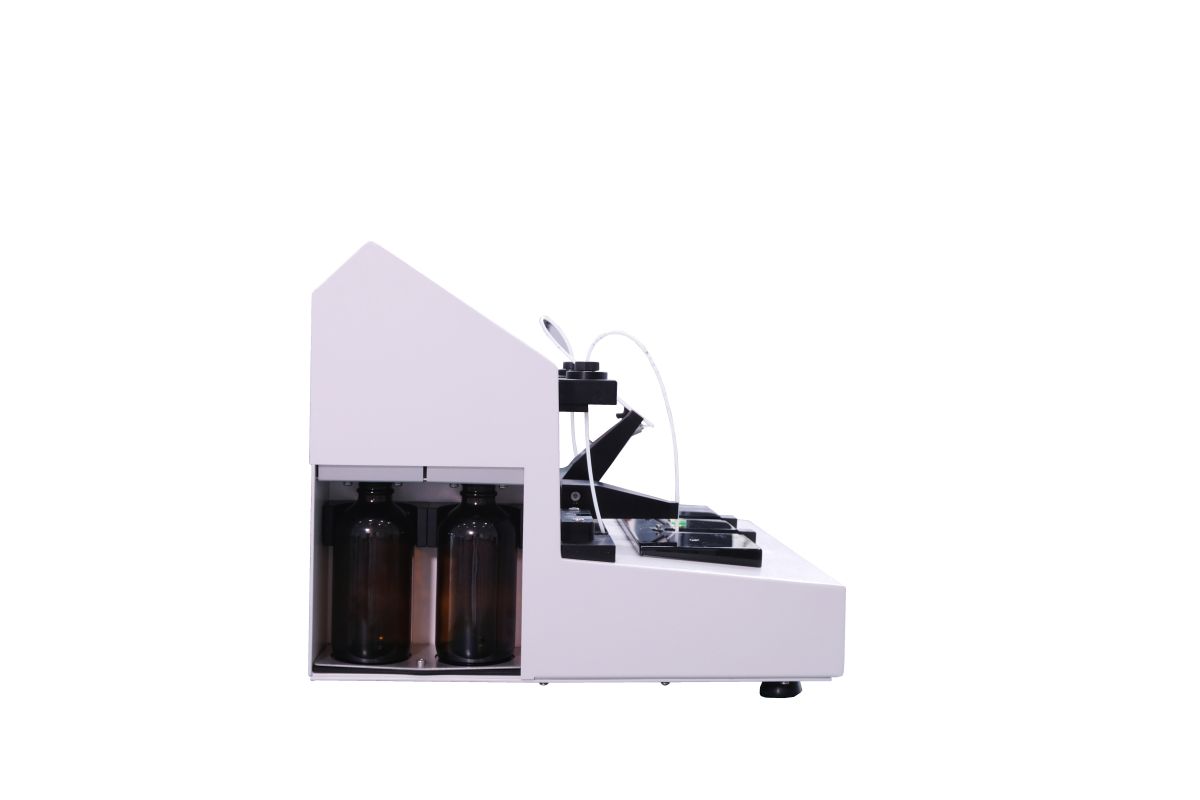

Iron spectrum analysis technology is one of the important technologies for equipment condition monitoring and predictive maintenance. It can accurately and reliably predict the wear status and potential faults of machine lubrication components, and optimize equipment utilization and efficiency through maintenance actions. The ferrographic analysis technology developed by Soohow Instrument has established equipment diagnostic standards and is widely used in oil analysis laboratories worldwide. Ferrography is mainly used for image analysis of wear particles in lubricating oil. Ferrography technology utilizes the effect of a magnetic field to separate iron debris particles and adhesive particles from machine lubricating oil samples, and analyzes the morphology, size, quantity, and particle size distribution of their deposition and separation, in order to obtain relevant information about the wear process. By using ferrography technology, the wear status of mechanical equipment during operation can be diagnosed and monitored, thereby improving the reliability and safety of the system. One of the important tools for applying ferrography technology is the ferrograph. The PA100 dual analysis ferrograph is designed as two independent circuits, allowing for the preparation of two oil samples simultaneously. Operators can choose between automatic, semi-automatic, and manual production of spectrograms.
Application field:
Transportation Industry - Internal Combustion Locomotive Inspection
Steel Industry - Fan Testing
Power Industry - Generator Set Testing
Navy Defense - Transmission Gearbox Inspection
Can produce two spectra simultaneously, automatically or semi-automatically;
Magnetic field: maximum magnetic flux density ≈ 1.8T;
Maximum magnetic field gradient: ＞ 0.5T/mm;
Oil sample transportation: flow range 10-30ml/h;
Oil pipeline size: outer diameter 2.3mm, inner diameter 1.7mm;
Transportation method: pneumatic;

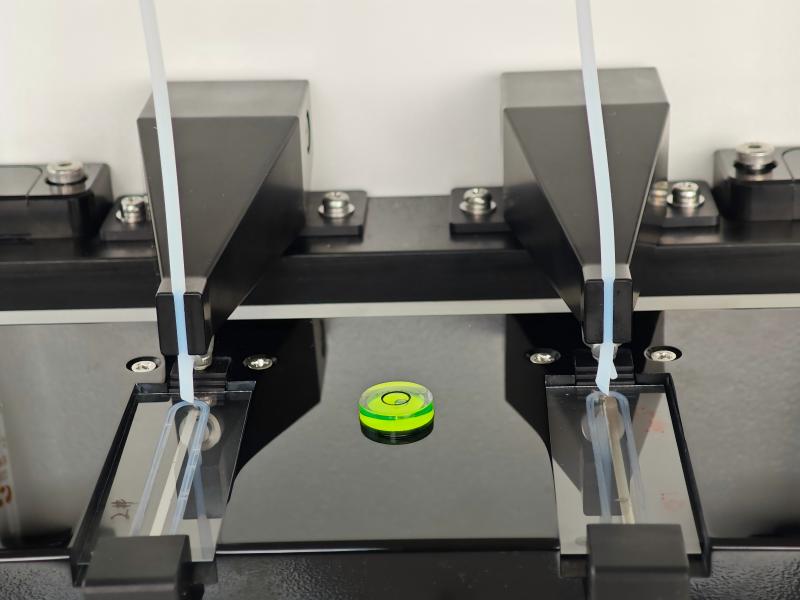

Iron spectrum inclination angle: 1 ° -5 °;
Iron spectrum substrate size (mm): 60mm * 24mm * 0.12mm (length * width * height);
Size: 395mm * 355mm * 330mm;
Weight: 13.5kg.
Matching microscope parameters
Optical systems: Infinite systems;
Eyepiece: Ultra large field of view Eyepiece EW10 x/22, mirror simple Φ thirty;
Infinite flat field achromatic objective:;
10 ×/0.25/∞/- (BF/DF) WD 10.0 mm;
20 ×/0.4/∞/0 (BF/DF) WD 4.30 mm;
5 ×/0.12/∞/- (BF/DF) WD 12 mm;
50 ×/0.75/∞/0 WD 0.32 mm;
100 x/0.8/∞/0 (BF/DF) WD 2 mm;
Observation head: hinged three eye observation head, tilted at 30 °, with a pupil distance of 48-75mm;
Maximum specimen height: 50mm;
Reflective lighting: 24V/100W halogen lamp (pre aligned), with adjustable brightness; Kohler lighting system, non spherical collector; Blue, green, and yellow filters and frosted glass;
Transmission lighting system: Pendulum type spotlight NA0.9/0.25; 24V/100W halogen lamp, non spherical collector; Blue filter;
Focusing system: Coarse motion coaxial focusing, fine adjustment grid value 1 μ m. Rough adjustment of elasticity with limit device;
Converter: Five hole converter.
The testing method and accuracy meet the ASTM D7690 and SH/T0573 testing standards;
The moisture in the oil has almost no effect on the production of spectra;
Once the oil sample is ready and inserted, the operation can proceed automatically, and the operator can perform other tasks;

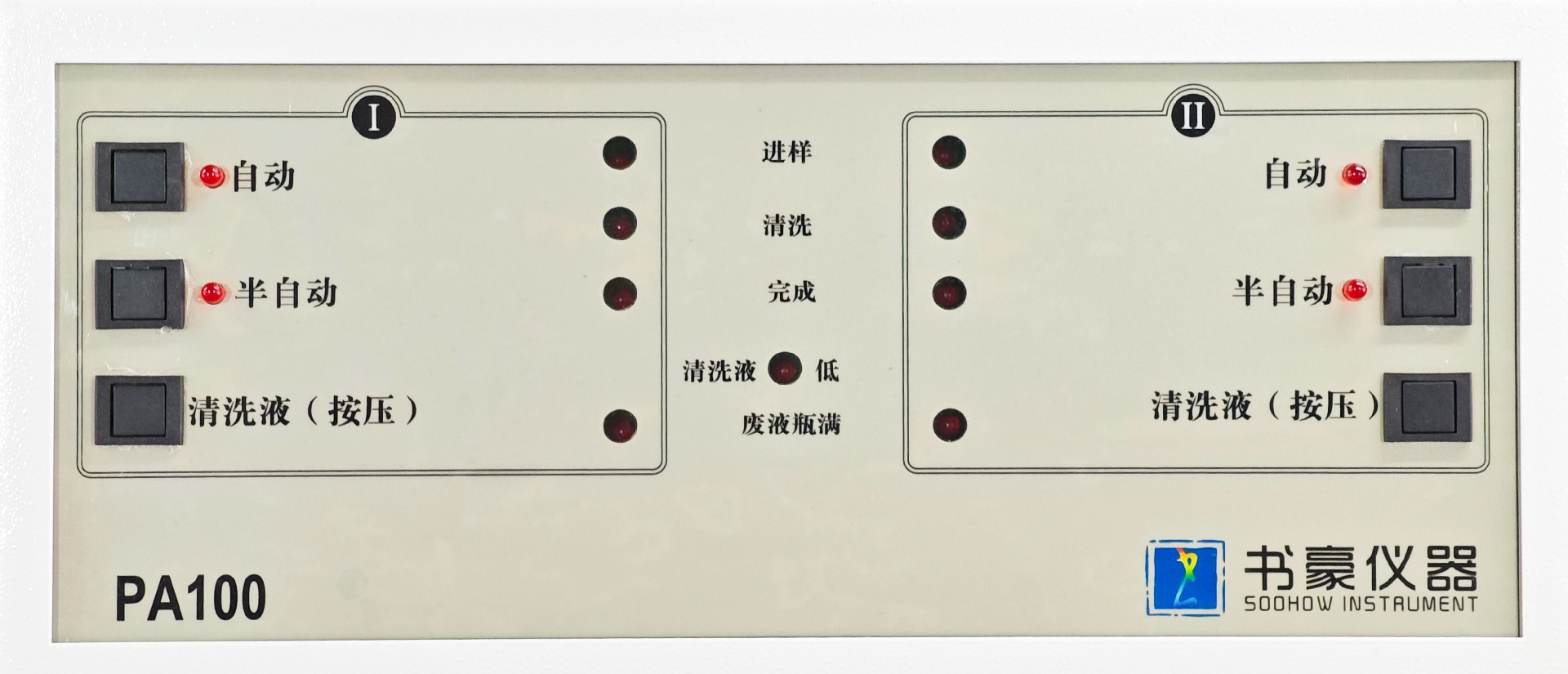

Convenient button operation;
Adjustable control of sample flow rate to ensure consistent spectral deposition and repeatability;
Produce 2 spectra simultaneously in less than 20 minutes;
The spectrum is transparent, allowing for the differentiation of metal, organic, and non-metal particles, making diagnosis easier;
The particles are arranged according to their magnetization coefficient and size, which facilitates quick interpretation of the particles;
Rarely does particle accumulation occur, making it easy to observe particles that are important for reflecting the state of the machine.
