Portable Kinematic Viscometer VS800 is a high-precision, multi-functional portable viscosity measurement instrument, widely used in various industrial fields. This instrument complies with ASTM D8092 standards, ensuring the accuracy and reliability of measurement results.
Portable Kinematic Viscometer VS800 employs an advanced split-cell capillary sample chamber design, which is easy to clean and maintain. It supports the testing of transparent oil samples, as well as black and heavily contaminated oil samples, without the need for pretreatment, significantly broadening the testing scope. The test time of the VS800 is directly proportional to the viscosity, ranging from a few seconds to several minutes. The cleanliness or color of the oil does not affect the viscosity results.
Application areas:
Mining and quarrying
Petrochemical industry
Laboratories
Marine and shipbuilding industry

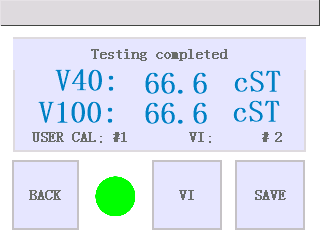

Display Screen | 2.8-inch LED display；320x240 Pixels |
Input Method | 4-wire resistive touch screen |
Interface | USB interface |
Battery Module | 24V；2600mA；rechargeable |
Sample Cell | Open-close capillary sample cell |
Photoelectric Sensor | Through-beam photoelectric sensor |
Software | Embedded software |
Data Storage and Export | Built-in memory (supports up to 1000 sets of data storage)；external USB export mode (tabular format) |
Viscosity Range | 10-350 cSt @ 40°C |
Accuracy | ≤ ±3% of measured value |
Repeatability | RSD≤±3%，typical |
Measurement Temperature | 40°C for kinematic viscosity；±1% temperature control |
Power Adapter | DC24V power adapter |
Dimensions | 201mm*119mm*155mm(length*width*height） |
Total Weight | 1.5Kg |
Performance Features
The detection method and accuracy comply with ASTM D8092;
Allows testing of almost any sample, including transparent oil samples, black, and heavily contaminated oil samples, without any pretreatment;
Requires minimal consumables, resulting in low processing costs and minimal environmental impact;
Features an open-close capillary sample cell that is easy to clean; simply wipe the surface of the sample cell with a non-abrasive cleaning pad;
Requires only 60μL of oil sample, ensuring that sampling does not affect lubricant levels; volumetric pipettes ensure measurement accuracy;
Eliminates issues related to solvent transportation and waste liquid discharge, and is more suitable for on-site use;
No pre-testing is required; each sample can be maintained at a constant temperature during testing.
