The specific protein analyzer uses scattering turbidimetry to determine the reaction between antigens and antibodies, and the rate method is used during the measurement process. Compared to other measurement methods, this method has higher sensitivity and faster detection speed, and is not affected by background scattering signals. Specific protein analyzer is mainly used to measure the content and activity of specific protein molecules in biological samples such as serum and plasma, and the interaction between these protein molecules and other molecules (such as antibodies and ligands). It can be used to detect tumor markers, infectious diseases markers, cardiovascular disease markers, etc., and dynamically monitor the content and change trend of these markers, Improve early diagnosis of diseases and assess treatment outcomes. In addition, specific protein analyzers can also be used for drug screening and efficacy evaluation research.
Application field:
Hospital
Health center
laboratory
Animal Hospital
1. Analysis Method: Rate nephelometry
2. Optical System: Single wavelength semiconductor light source, wavelength of 650nm, disposable organic glass cuvettes
3. Reagents: Dedicated reagents for the analyzer
4. Reaction Cuvettes: 4
5. Reaction Speed: 60 tests per hour
6. Data Processing: Test result storage and monitoring, result inquiry, result printing
7. Power Supply: AC 110V~240V, 50Hz
8. Sample Types: Whole blood, serum, plasma
9. Sample Volume: 3μL~5μL per test
10. Reagent Volume: 200μL~300μL per sample

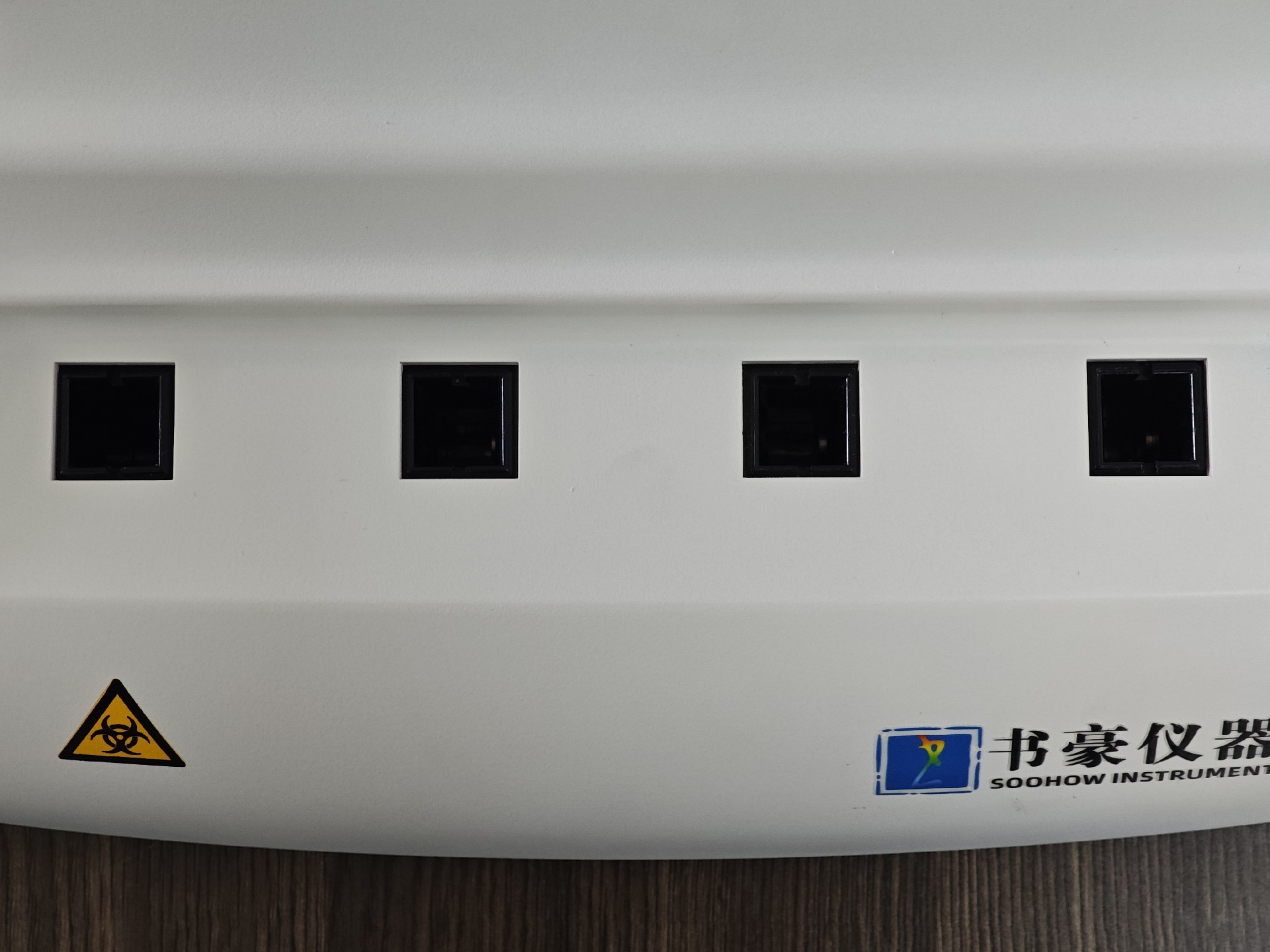

11. Measurement Channels: Four, with independent operation between channels, allowing simultaneous testing of the same or multiple items
12. Temperature Control and Stirring: Automatic temperature control, automatic stirring
13. Detection Procedure: Pre-packaged reagents, simple detection steps with only one step required, results available immediately

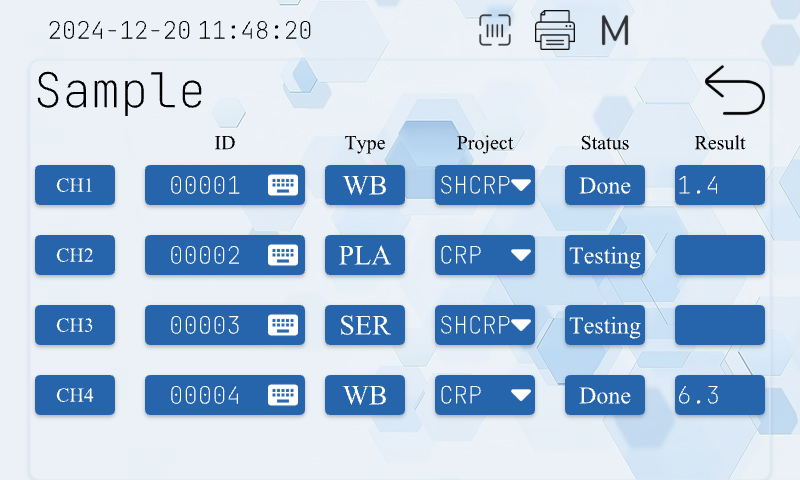

14. Operating Software: Real-time multitasking operating system, user-friendly interface, comprehensive data management, hierarchical menu control, easy operation
15. Standard Storage: Can store up to 20,000 patient data sets, expandable with SD card for unlimited storage

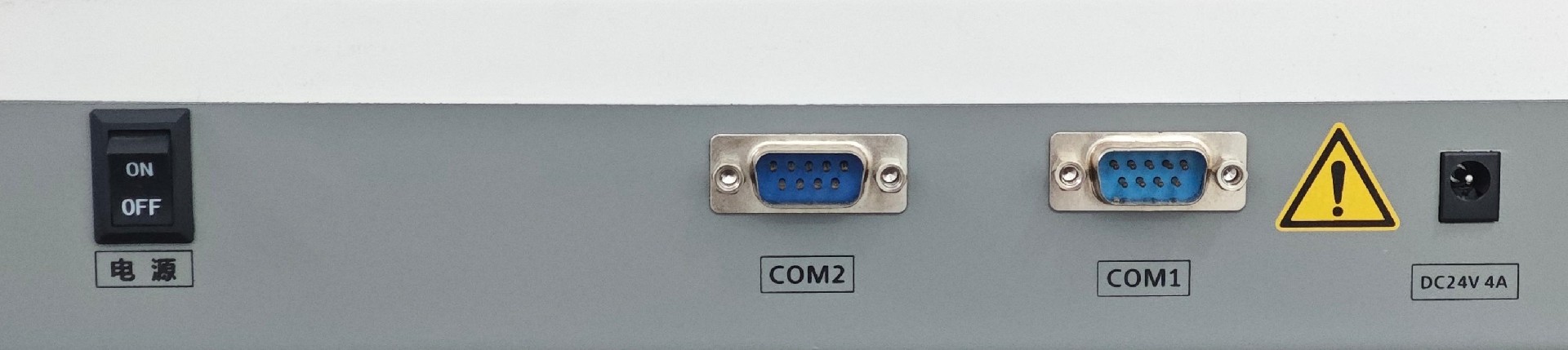

16. External Devices: COM RS-232 interface
17. Dimensions: ≤320*230*130mm
1. Device Expansion: Supports barcode scanning input, seamless connection with Laboratory Information System (LIS), real-time data sharing
2. Accuracy and Sensitivity: Utilizes advanced photoelectric technology, high detection sensitivity, wide detection range, employs rate nephelometry principle, accurate and repeatable results through powerful computing system and multi-curve multi-dimensional calibration, CV < 5% for each test item
3. Traceability: Test results can be traced to international reference material CRM470
4. Calibration: Intelligent and efficient card-swiping system, eliminates the need for manual standard curve preparation and blank control
5. Normal Operating Conditions
a) Environmental Temperature: 15°C~30°C
b) Relative Humidity: 40%~85%
c) Atmospheric Pressure: 86.0kPa~106.0kPa
d) Power Supply Requirements: AC (110V~240V) ±10%, 50Hz ±1Hz
e) No strong magnetic field interference or mechanical vibration, no corrosive gases, no direct strong light exposure
6. Deviation Between Four Channels: Tests the consistency of scattered light paths in four channels, with deviation between channels ≤5%
