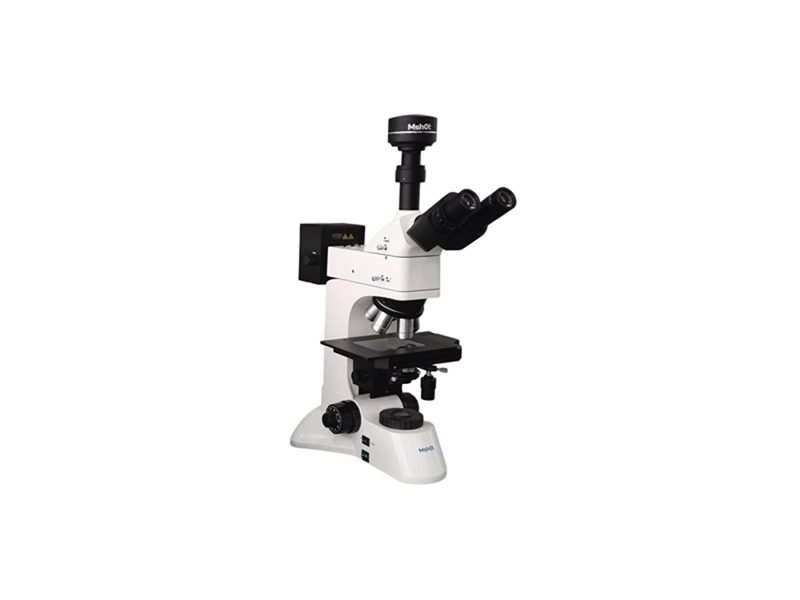

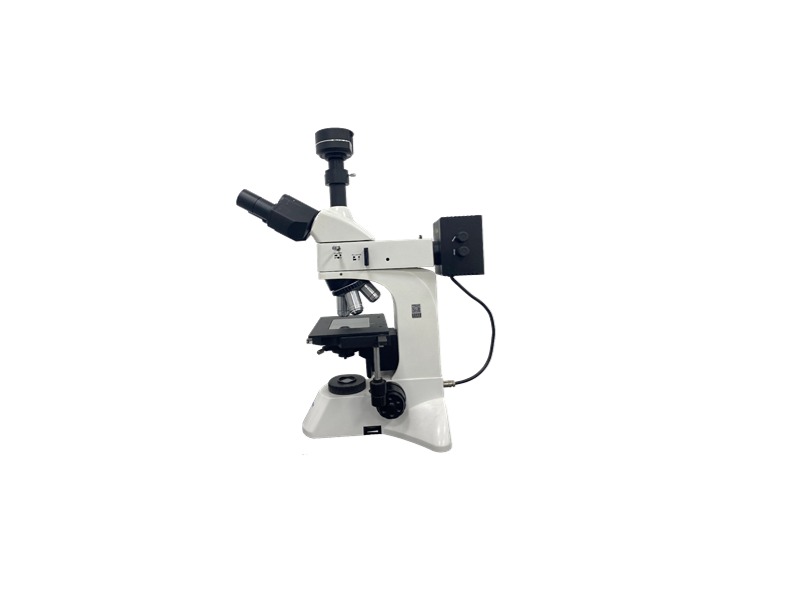

Iron spectrum microscope is a specialized instrument used for observing and analyzing the microstructure of metal materials. It obtains information about the structure and heat treatment status of ferromagnetic debris by finely cutting and polishing metal samples, and observing and analyzing them under a metallographic microscope. Iron spectrum microscopy is widely used in scientific research and engineering practice in the fields of metallurgy, materials science, mechanical engineering, metallurgy, and related fields.
Optical system: Infinite optical system;
Total magnification: 50X-1000X;
Ultra large field of view eyepiece: EW10X/22, with a field of view diameter of 22mm, providing a wider viewing range;
Maximum specimen height: 50mm;
Infinite flat field achromatic light and dark field metallographic professional objective:
5X/0 12/∞/- (BF/DF), (shared between light and dark fields), WD=12mm;
10X/0.25/∞/- (BF/DF), (shared between light and dark fields), WD=10.0mm;
20X/0.40/∞/0 (BF/DF), (shared between light and dark fields), WD=4.30mm;
50X/0.75/∞/0 (BF/DF), (shared between light and dark fields), WD=0.32mm;
100X/0.80/∞/0 (BF/DF), dry mirror, (shared between light and dark fields), WD=2mm;
Reflective lighting: External light box 24V100W halogen lamp, continuously adjustable brightness, Kohler lighting system, non spherical collector blue, green, yellow filters, and frosted glass
Light and dark field device: built-in light and dark field switching lever, toggle lever;
Transmission lighting: External light box 24V100W halogen lamp, continuously adjustable brightness, Kohler lighting system, and blue glass filter;
Light source switching: One click switching of up and down light sources, simple, durable, and convenient to operate;
Pendulum condenser: NA0.9/0.25, blue filter;
Low position coarse adjustment coaxial, stroke 30mm, minimum reading value of fine adjustment 0.001mm, coarse adjustment stroke 37.7mm per circle, micro adjustment stroke 0.1mm per circle, equipped with limit device (to prevent the stage from rising too high and slicing from damaging the lens and coarse adjustment torque adjustment device (the elasticity of coarse adjustment can be adjusted);
Converter: Five hole converter, inward facing, ball positioning, preventing air pollution to the lens, with DIC slot;
Double layer mechanical mobile loading platform, right hand coaxial low position operation XY movement, with an area of 186X138mm and a movement range of 74X50mm. The loading platform, glass slide, and glass components of the loading platform can be freely loaded and unloaded;
T-shaped base, high stability, convenient for handling; Integrated reflective lighting device with built-in fixed center adjustment mechanism to prevent improper operation from affecting use.
1/2.3-inch color CCD chip with a maximum resolution of 16 million pixels (4640x3506); Real time frame rate: 6.0@4648x3506 ; 15.0@2304x1750 ; 30.0@1536x11685 Data interface type: USB3.0/compatible with USB2.0 imaging software;
Image acquisition: Supports TWAIN and DSHOW interfaces, with an intuitive interface and easy operation;
Exposure control: automatic and manual, adding annotations to images, and other functions;
Powerful image editing and measurement functions, capable of adjusting brightness and contrast, as well as image copying, cropping, rotation, flipping, and other functions; Can achieve the function of adding rulers, magnify the proportion relationship, and freely choose ruler position, thickness, font size, font type, color, etc; Can measure directly and output the measurement results to Excel;
Automatic mosaic and depth of field extension (EFI) processing can perform large image stitching on multiple adjacent images, easily obtaining high-resolution large field images;
Quick experimental report based on WORD template: One click experimental report creation, which can directly generate experimental reports from cameras and image files. Experimental report templates can be defined and edited by users in WORD.
