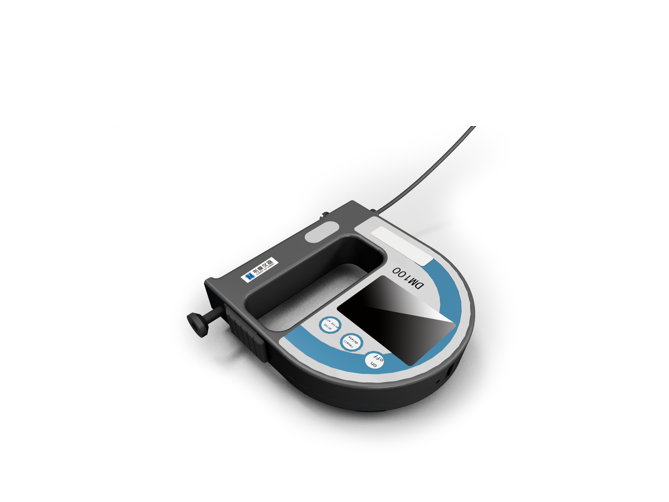

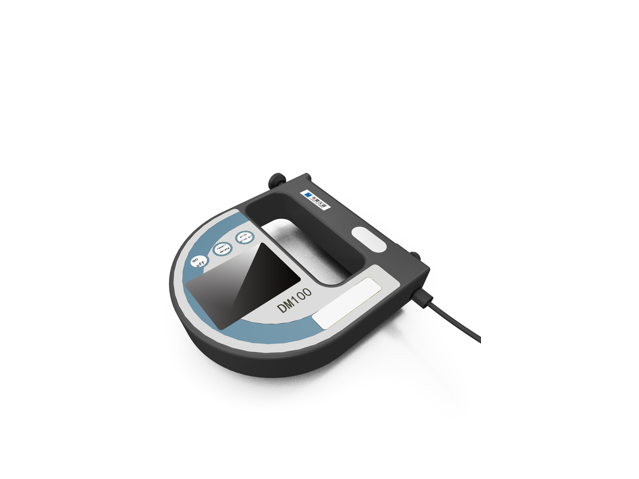

DM100 is a portable handheld densitometer utilizing patented U-shaped oscillating tube measurement technology for liquid density measurement. In addition to measuring liquid density in g/cm³ or kg/m³ units, it can also determine specific gravity, reference temperature, concentration and other parameters. The temperature sensor provides real-time sample temperature measurement in the measuring cell, displayed on the screen, and can be internally used for automatic temperature compensation during density measurement when required.
Application Fields
Petrochemical industry
Pharmaceutical and chemical industries
Food and beverage industry
Electronics engineering
Injection Method | Automatic Pumping / Manual Injection |
Single Sample Volume | 2ml |
Sample Cell | U-shaped Curved Oscillating Glass Tube |
Measurement Range | Density: 0g/cm³ to 3g/cm³; Temperature: 0°C to 40°C (32°F to 104°F) |
Display | 4-digit 8-segment LED Display; 55×45×2.8mm |
Digital Resolution | Density: 0.0001g/cm³ |
Input Method | Metal Dome Physical Buttons (3 units) |
Interface | Infrared Interface (IrDA) |
Data Storage & Export | Built-in Memory (Max 1000 data groups); External USB Export (Table Format) |
Battery Module | 2 × AAA Batteries (3V) |
Accuracy | Density: 0.001g/cm³; Temperature: 0.2°C (0.4°F) |
Repeatability (SD) | Density: 0.0005g/cm³; Temperature: 0.1°C (0.2°F) |
Reproducibility (SD) | Density: 0.0001g/cm³ |
Dimensions | 160mm × 140mm × 28mm (Length × Width × Height) |
Weight | Approx. 260g |
Compact and lightweight design for easy single-handed operation with intuitive display interface;
Leak-proof robust housing ensures sample containment even if sampling pump leaks;
Infrared interface (IrDA) for data transfer between printer and computer;
Over 20 measurement methods available;
Stores 1024 data points including time stamps and sample IDs;
5 customer-defined method slots reserved;
Entire sampling pump can be quickly and conveniently replaced.
