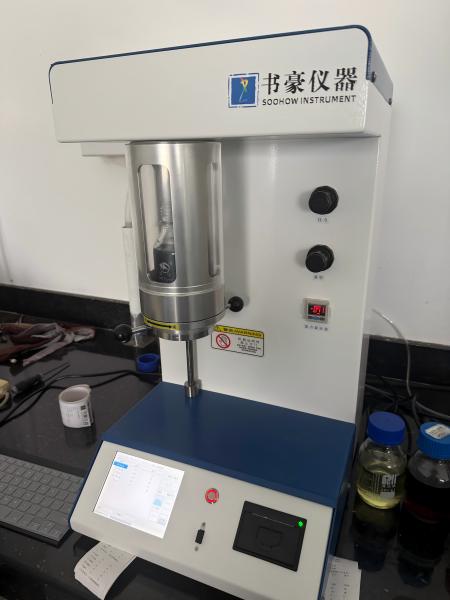

As a thermal power enterprise, Qiandong Power has long faced technical challenges in ensuring the stable operation of its equipment. Our company's Desktop oil particle counter SLPC100 is a high-precision detection device that employs the principle of light blockage counting. Its technical characteristics are highly compatible with Qiandong Power's needs:
1. High-Precision Detection Capability:
Equipped with a high-precision laser sensor, it boasts a wide testing range and high resolution, capable of accurately detecting particles ranging from 0.5μm to 600μm in oil.
The sensitivity varies based on calibration methods and standards, with a repeatability RSD of less than 2%, ensuring the stability and reliability of detection results.
2. Multi-Functional Sample Introduction System:
Featuring a high-pressure syringe pump for sampling, it allows users to set the sampling volume, ensuring stable injection speed and high sampling accuracy.
The combined positive and negative pressure sample introduction system effectively removes bubbles from the liquid, suitable for testing oils of different viscosities.
3. Intelligent Operation and Data Analysis:
It comes with multiple built-in calibration curves, compatible with commonly used international and domestic standards (such as ISO 11171, ISO 4402), and supports user-defined standard testing.
The full-featured automatic color touchscreen operation supports both Chinese and English interfaces, making operation simple and convenient.

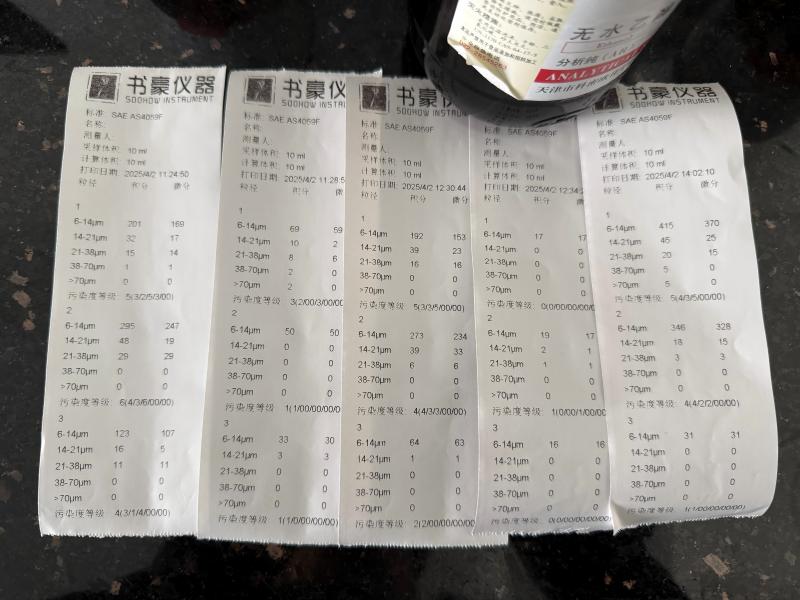

The built-in data analysis system provides all standard test data and contamination levels with a single test.
4. Wide Application Areas:
It is applicable for detecting microscopic particle contaminants in liquid media such as hydraulic oil, lubricating oil, and transformer insulating oil, with widespread applications in the power, petroleum, chemical, transportation, and other industries.

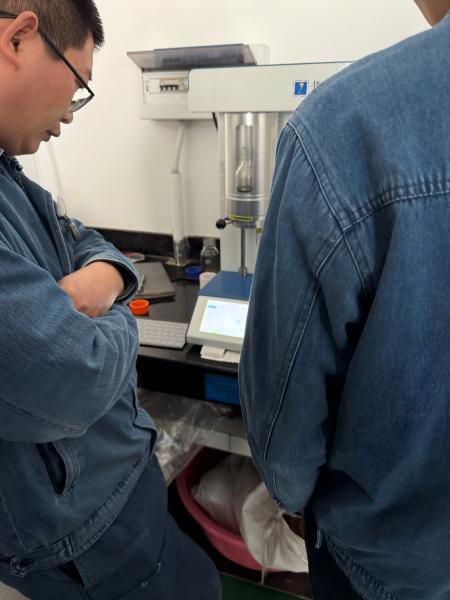

At Qiandong Power, SLPC100 is mainly used in the following scenarios:
Transformer Insulating Oil Testing:Detecting particle contaminants in insulating oil to prevent insulation performance degradation caused by particle contamination, ensuring the safe operation of transformers.
Lubricating Oil System Monitoring:Detecting particle contaminants in lubricating oil to assess equipment wear and provide a scientific basis for lubricant replacement and maintenance.
Equipment Fault Diagnosis:Assisting in judging equipment fault types and locations by analyzing the particle composition and size in the oil, thereby improving maintenance efficiency.
The customized features of SLPC100 have been fully utilized at Qiandong Power:
1. User-Defined Detection Standards:
Qiandong Power has customized detection standards based on its equipment characteristics and testing requirements, ensuring the accuracy and applicability of the detection results.
2. Multi-Detection Channel Settings:
SLPC100 supports the setting of up to 64 detection channels. Qiandong Power flexibly configures detection channels based on different equipment and oil types, improving detection efficiency.
3. Cleaning and Detection Function:
During equipment maintenance, Qiandong Power utilizes SLPC100's cleaning and detection function to preset the target particle concentration for cleaning, ensuring cleaning effectiveness and improving equipment cleanliness.
4. Optional Sensor Modules:
Qiandong Power has optionally equipped viscosity, moisture, and temperature sensor modules. While detecting particle contamination, it monitors oil viscosity, moisture content, and temperature in real-time, providing more comprehensive data support for equipment maintenance.
Through the application of SLPC100, Qiandong Power has achieved remarkable results:
Enhanced Equipment Stability:The high-precision detection capability of SLPC100 allows for the timely discovery of particle contamination issues in oil, providing early warnings for equipment maintenance and effectively preventing equipment failures and unexpected shutdowns caused by particle contamination.
Optimized Maintenance Strategies:Through precise oil particle detection, Qiandong Power can formulate more scientific equipment maintenance plans, avoiding over-maintenance and unnecessary lubricant replacements, thereby reducing operating costs.
Improved Detection Efficiency:The automated operation and rapid detection capabilities of SLPC100 significantly improve oil detection efficiency, shorten equipment maintenance cycles, and enhance overall operational efficiency.
With the continuous development of the power industry and advancements in equipment detection technology, Qiandong Power will continue to deepen its cooperation with our company in terms of advanced detection equipment such as SLPC100, exploring its applications in more fields.
